Real Time Payments

Create a payment transaction for Real-Time Payments (RTP). Merchants can integrate RTP with Juspay to display QR codes, enabling customers to scan and complete payments instantly. The API response includes a QRString and an authentication URL, allowing merchants to display the QR code to users based on your specific use case.

Handling QRString
qrstring from the response can be directly retrieved and embedded into your application for display.

Handling Authentication URL

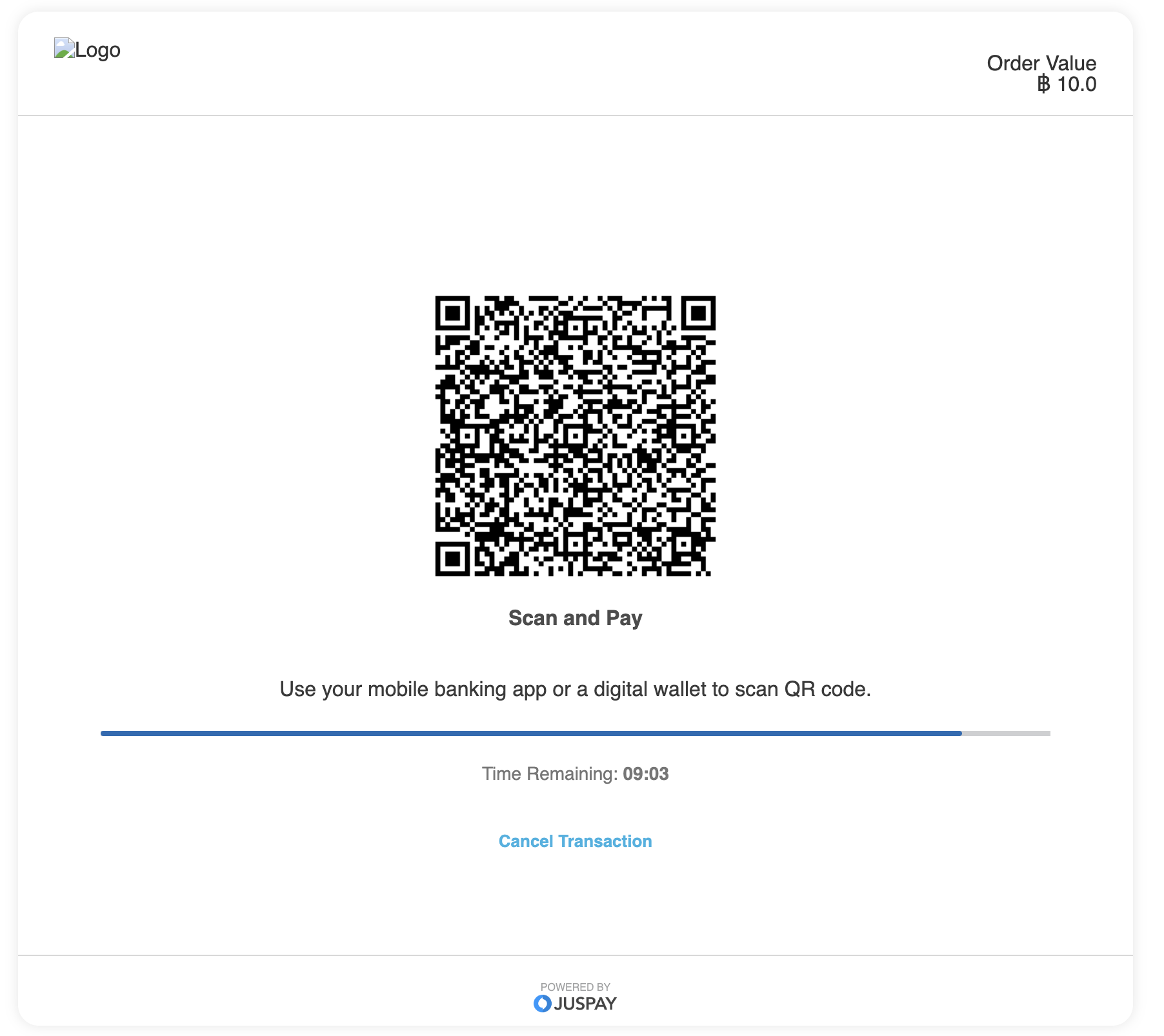

If you prefer not to manage the QRString, the URL provided in the response can be loaded directly in a browser, where Juspay will handle the QR code display for the user.

The default timer value is set to 10 minutes and is configurable. If you need to adjust the timer value, please contact the Juspay team for assistance.
Logo update on the timer screen is feasible and can be easily managed through the Juspay Dashboard:
1. Log in to the Juspay Dashboard.
2. Navigate to "Payments" → "Settings" → "General"
3. Update the logo under the "Your Company Logo" section.

Supported Payment Methods:

Scroll inside to view more

payment_method	RTP
PAYNOW	PayNow
DUITNOW	Duitnow
PROMPTPAY	PromptPay
FPS_QR	FPS QR

Request

Response

API Endpoints

Sandbox Link

POST

https://sandbox.juspay.in/txns

Production Link

POST

https://api.juspay.in/txns

                      Content-Type
                      *


String

Mandatory

application/x-www-form-urlencoded

                      x-merchantid



String

Recommended

Unique identifier for the merchant. This is the Merchant ID provided by Juspay. The value is case sensitive.

Passing this value will help us route efficiently at network level.

Example:- x-merchantid: testaccount

                      version



String

Optional

Pass the date in YYYY-MM-DD format.
Note: If a version is provided, the response will include data corresponding to that specific version date.

It is recommended not to enforce strict validation on the entire response on the merchant's side to allow for future key additions.

Body

                      order_id
                      *


string

Mandatory

order_id pertaining to the order for which the payment is started.

                      payment_method_type
                      *


string

Mandatory

Must be RTP

                      payment_method
                      *


string

Mandatory

The actual RTP payment method that was selected by the user.

                      redirect_after_payment
                      *


string

Mandatory

This is a boolean variable and accepts true/false. We recommend that you set this to true and use the redirection flow. If set to true, then the user is redirected to the return_url configured for the order. If set to false, then the user will be stopped at the response page from the gateway. Your client should be able to read the page/title to infer that the user has completed the transaction.

                      format
                      *


Json

Mandatory

it is set to json, then the response will be HTTP 200 with a JSON formatted text. Otherwise, the response is HTTP 200 with the HTML response where user will be redirected to QR code page within 3 secs.

                      sdk_params



Boolean

It accepts a Boolean value.
- Set sdk_params to true to retrieve both qrString and url.
- Set sdk_params to false to retrieve only authentication url in the response.

Response Body

                      order_id



string

Unique Identifier for the order which is passed in the api request

                      txn_id



string

Transaction ID for the order.

                      status



string

Refers to status of the order

                      payment



object

                      authentication.method



String

It provides the details about the type of authentication method. It can be either GET or POST

                      authentication.url



string

User can be directed to the targeted payment method page by loading the URL in the browser

                      sdk_params.tag
                      *


String

Mandatory

Refers to the category of sdk_params fields

                      sdk_params.qrString
                      *


String

Mandatory

Qrcode String generated for the input RTP method which can be direct used in your application

                      txn_uuid
                      *


String

Mandatory

The unique id generated by Juspay for a particular transaction. Can be used as an identifier in case of RTP transaction

Response Body

                      error_message



String

Provides the reason for the error

Example:- Response: Bad request.

                      status



String

Error status

Example:- Response:ERROR

                      error_code



String

Specifies the Error code

Example:- Sample Response:Bad request.

                      error_info



JSON

Additional information on the error message

                      user_message



String

Error message can be displayed to the user

Example:- Sample Response:Bad request.

                      fields



Array

Details on the missing field with which the error occurred

                      developer_message



String

Detailed info on the error

Example:- Sample Response:Failed while parsing your request.

                      category



String

category of the error

Example:- Sample Response:USER_ERROR

Error Codes:

Scroll inside to view more

Scenario	Error Codes	Sample Error Message
Not passing order id	400	{"error_message":"[order id] cannot be null","status":"invalid_request_error","error_code":"blank","error_info": {"user_message":"Cannot process your request. Please contact support team for assistance.","fields": [{"field_name":"order_id","reason":"Missing field."}],"developer_message":"Missing order id. Please pass order_id or order payload.","code":"MISSING_MANDATORY_PARAMETER","category":"USER_ERROR"}}
Not passing merchant_id	400	{"error_message":"Bad request.","status":"ERROR","error_code":"Bad request.","error_info": {"user_message":"Bad request.","fields": [{"field_name":"merchant_id","reason":"Field required but not passed."}],"developer_message":"Failed while parsing your request.","code":"MISSING_MANDATORY_PARAMETER","category":"USER_ERROR"}}
Passing merchant_id as Empty	400	{"user_message":"Invalid merchant id. Cannot process your request.","error_message":"Invalid Request","error": true,"error_info": {"user_message":"Please pass valid merchant_id in request.","fields": [{"field_name":"merchant_id","reason":"Invalid merchant_id."}],"developer_message":"merchant_id is invalid.","code":"RESOURCE_NOT_FOUND","category":"USER_ERROR"}}
Passing invalid Merchant ID	400	{"user_message":"Invalid merchant id. Cannot process your request.","error_message":"Invalid Request","error": true,"error_info": {"user_message":"Please pass valid merchant_id in request.","fields": [{"field_name":"merchant_id","reason":"Invalid merchant_id."}],"developer_message":"merchant_id is invalid.","code":"RESOURCE_NOT_FOUND","category":"USER_ERROR"}}
Passing wrong endpoint	404	Response will be empty
Not passing gateway reference id but gateway configured with gateway reference ID on Juspay dashboard	400	{"error_message":"Can't find a suitable gateway to process the transaction","status":"Bad Request","error_code":"invalid_request_error","error_info":{"user_message":"Gateway not found to process the transaction request.","developer_message":"No functional gateways after filtering for currency THB","code":"GATEWAY_NOT_FOUND","category":"CONFIG_ERROR"}}
Not passing payment method	400	{"error_message":"Payment method type cannot be null","status":"invalid_request_error","error_code":"missing_payment_method_type","error_info":{"user_message":"Please pass payment method type in the request.","fields":[{"field_name":"payment_method_type","reason":"Missing field."}],"developer_message":"Missing payment method type in the request. Payment method type is a mandatory parametere.","code":"MISSING_MANDATORY_PARAMETER","category":"USER_ERROR"}}
Not passing payment method type	400	{"error_message":"Payment method cannot be null","status":"invalid_request_error","error_code":"missing_payment_method","error_info":{"user_message":"Cannot process your request. Please contact support team for assistance.","fields":[{"field_name":"payment_method","reason":"Missing field."}],"developer_message":"Missing payment method. Payment method is required for provided payment method type.","code":"MISSING_MANDATORY_PARAMETER","category":"USER_ERROR"}}
